W1-2000 Series Intelligent Air Circuit Breaker | Reliable Industrial Power Protection
W1-2000 Intelligent Air Circuit Breaker, 200A-6300A, 690V. Smart overload/short circuit protection, high breaking capacity for industrial use.
- Product Name: W1-2000 Series Intelligent Air Circuit Breaker
- Product Model: W1-2000
- Product Type: Intelligent Low-Voltage Air Circuit Breaker
- Product Type: Intelligent Low-Voltage Air Circuit Breaker
- Rated Frequency: AC 50Hz
- Rated Voltage: Up to 660V/690V
- Rated Current Range: 200A ~ 6300A
- Short-Circuit Breaking Capacity: 85KA ~ 120KA
- Installation Type: Fixed Type, Draw-out Type
- Operation Mode: Electric Operation, Manual Operation

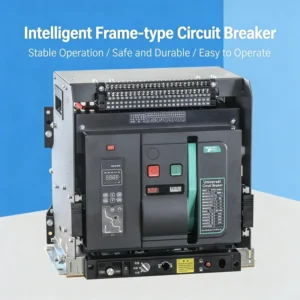

W1-2000 Series Intelligent Air Circuit Breaker: Reliable Power Protection for Industrial Application
Core Advantages of W1-2000 Intelligent Air Circuit Breaker
The W1-2000 Series Intelligent Air Circuit Breaker is a high-performance electrical protection device designed for modern power distribution systems. As a core component of industrial and commercial power networks, the W1-2000 Intelligent Air Circuit Breaker delivers reliable protection against overload, short circuit, undervoltage, and other electrical faults, ensuring the safety and stability of power supply.
Engineered for AC 50Hz distribution networks with a rated voltage up to 690V and rated current ranging from 200A to 6300A, the W1-2000 Intelligent Air Circuit Breaker is suitable for a wide range of industrial scenarios, including manufacturing plants, power distribution rooms, and large-scale infrastructure projects. The W1-2000 Intelligent Air Circuit Breaker not only distributes electrical energy efficiently but also provides intelligent, precise protection to prevent equipment damage and unplanned power outages, significantly improving power supply reliability.

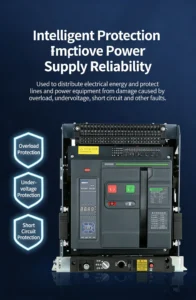

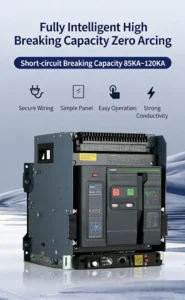

Intelligent Protection & High Breaking Performance
Equipped with an advanced intelligent controller, the W1-2000 Intelligent Air Circuit Breaker offers multiple protection functions, such as overload long delay, short circuit short delay, instantaneous tripping, and undervoltage protection. The W1-2000 Intelligent Air Circuit Breaker also supports open communication interfaces, enabling remote control and monitoring to meet the requirements of automated power management systems. With a high short-circuit breaking capacity of 85KA to 120KA, the W1-2000 Intelligent Air Circuit Breaker can quickly cut off fault currents, minimizing the impact of electrical faults on the entire power system.

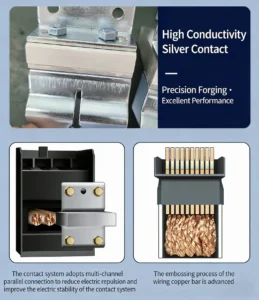

Premium Structure & Reliable Material Design
The W1-2000 Intelligent Air Circuit Breaker features a robust structure with high-conductivity silver contacts, ensuring low contact resistance and excellent electrical performance. The contact system of the W1-2000 Intelligent Air Circuit Breaker adopts a multi-path parallel design, reducing electric repulsion and enhancing the electrical stability of the contact system. Additionally, the wiring copper bar of the W1-2000 Intelligent Air Circuit Breaker uses advanced embossing technology, ensuring firm wiring and strong conductivity, which further improves the reliability of the W1-2000 Intelligent Air Circuit Breaker in long-term operation.

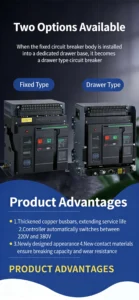

Flexible Configuration & Wide Application Scenarios
Available in fixed and draw-out types, with 3-pole and 4-pole configurations, the W1-2000 Intelligent Air Circuit Breaker can be flexibly adapted to different installation and application requirements. The W1-2000 Intelligent Air Circuit Breaker also supports multiple operation modes, including electric operation and manual operation, making maintenance and repair more convenient. Whether for new power distribution system construction or existing equipment upgrades, the W1-2000 Intelligent Air Circuit Breaker is an ideal choice for ensuring power safety and operational efficiency.
Compliance & Quality Assurance
Compliant with international and national standards such as IEC60947-2 and GB14048.2, the W1-2000 Intelligent Air Circuit Breaker undergoes strict quality testing to ensure stable performance in various harsh environments. The W1-2000 Intelligent Air Circuit Breaker combines intelligent protection, high breaking capacity, and easy operation, making it a trusted solution for industrial power distribution and electrical safety protection.
What is the rated voltage and current range of the W1-2000 air circuit breaker?
The W1-2000 Intelligent Air Circuit Breaker is designed for AC 50Hz distribution networks with a rated voltage up to 690V and a rated current range of 200A to 6300A. It supports flexible adaptation to different industrial power distribution scenarios.
What protection functions does the W1-2000 circuit breaker have?
The W1-2000 is equipped with comprehensive intelligent protection functions, including overload long delay protection, short circuit short delay protection, instantaneous tripping protection, and undervoltage protection. It can quickly cut off fault currents to protect power distribution systems and equipment.
What is the short-circuit breaking capacity of the W1-2000?
The W1-2000 features a high short-circuit breaking capacity of 85KA to 120KA, ensuring reliable fault current interruption and minimizing the impact of electrical faults on the entire power system.
What installation and operation modes are available for the W1-2000?
The W1-2000 is available in fixed and draw-out types (3-pole/4-pole optional). It supports two operation modes: electric operation and manual operation, making installation, maintenance, and repair more convenient for on-site staff.
What materials and structural designs ensure the reliability of the W1-2000?
The W1-2000 adopts high-conductivity silver contacts to reduce contact resistance and improve electrical performance. Its contact system uses a multi-path parallel design to lower electric repulsion, while the wiring copper bar employs advanced embossing technology for firm wiring and strong conductivity.
What international standards does the W1-2000 comply with?
The W1-2000 Intelligent Air Circuit Breaker fully complies with international and national standards such as IEC60947-2 and GB14048.2, ensuring stable performance and safe usage in various industrial and commercial environments.
